Enter NOGA MT UBURR – a family of deburring tools designed to streamline the automatic deburring process, comprising two essential components:
  1. Precision cutting blade with unique geometry with different chip-formers and sizes.
  2. MT DURASHIELD state-of-the-art tool-holder as never seen before in the industry for the metal cutting tools.

UBURR sets a new standard in deburring efficiency and excellence.

In the realm of machining and manufacturing, deburring tools play a crucial role, ensuring that drilled holes are clean, smooth, and free from any unwanted burrs that could affect performance or aesthetics.

At NOGA MT, our vision is clear: to deliver unparalleled excellence through top-quality products engineered by skilled professionals and crafted from the finest materials our world has to offer. Join us as we redefine deburring with UBURR.

UBURR Product

UBURR Blade cutting-edge geometry

Operational Excellence
  • Automated Efficiency:Achieve seamless production with single-pass automatic deburring of both front and rear hole surfaces, eliminating the need for manual intervention.
  • Precision Performance: Consistently deliver high-quality deburring results at any production volume.
  • Premium Construction: Manufactured from Precipitation Hardened AISI 17-4 PH for outstanding durability and dependable performance.
Versatile Application
  • Universal Compatibility:Operates effectively with both CNC machines and electric hand drills.
  • Adaptive Design:A single holder supports multiple pilot diameters, reducing the need for extensive tool inventory.
  • Material & Geometrical Support: Available with TiAlN PVD or polished blades with 3 types of chip formers for efficient processing of various materials.
Smart Design Features
  • Plug-and-Play Convenience: No blade adjustments required, saving time and ensuring consistent, repeatable results.
  • Protective Geometry: Specialized blade design prevents scratches on drilled or threaded surfaces.
  • Simplified Maintenance: Quick and intuitive blade replacement minimizes downtime.
  • Efficient Inventory Management: Only two blade types needed for all hole diameters.
  • Customizable Solutions: Tailored configurations available to meet specific production needs.

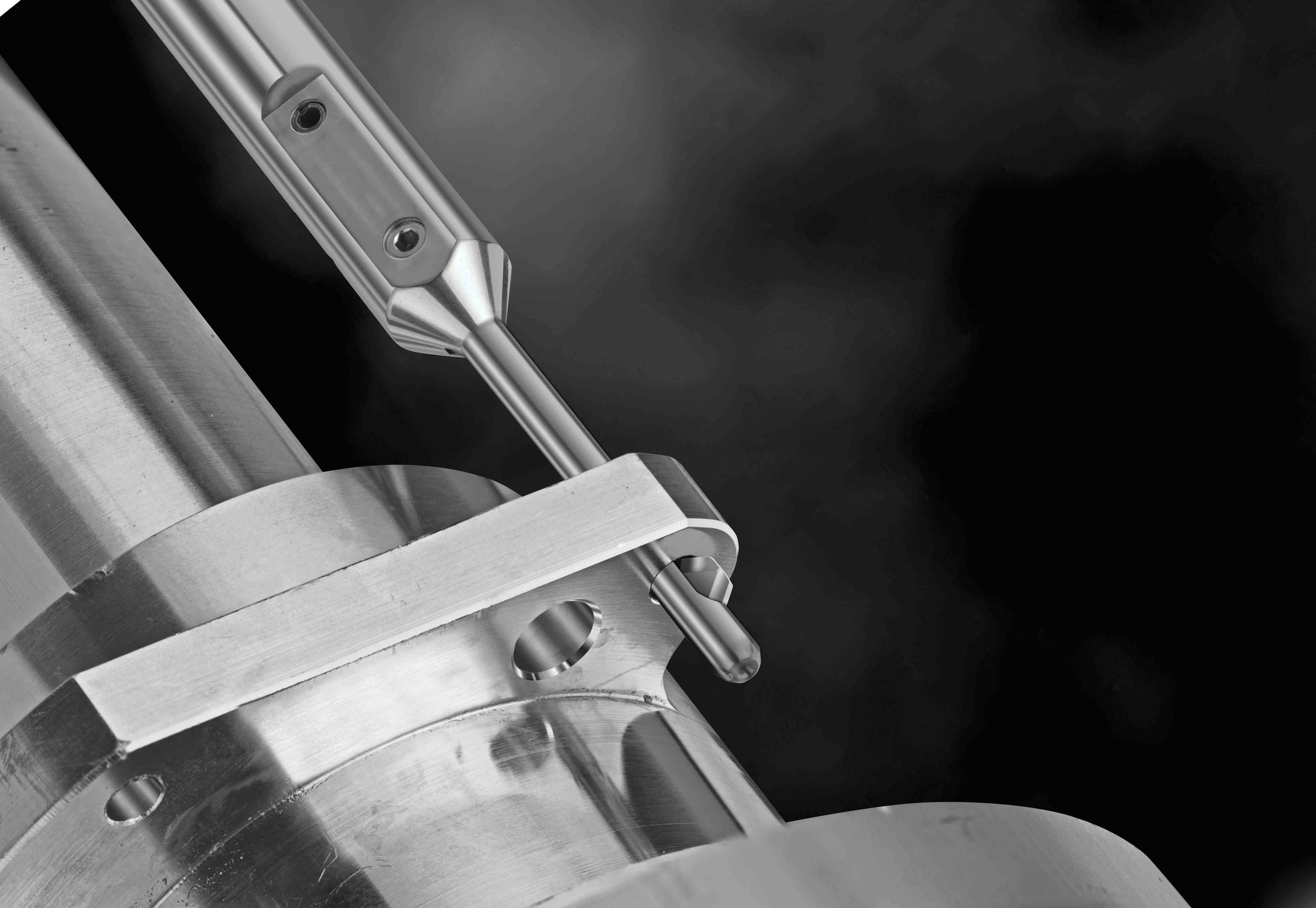

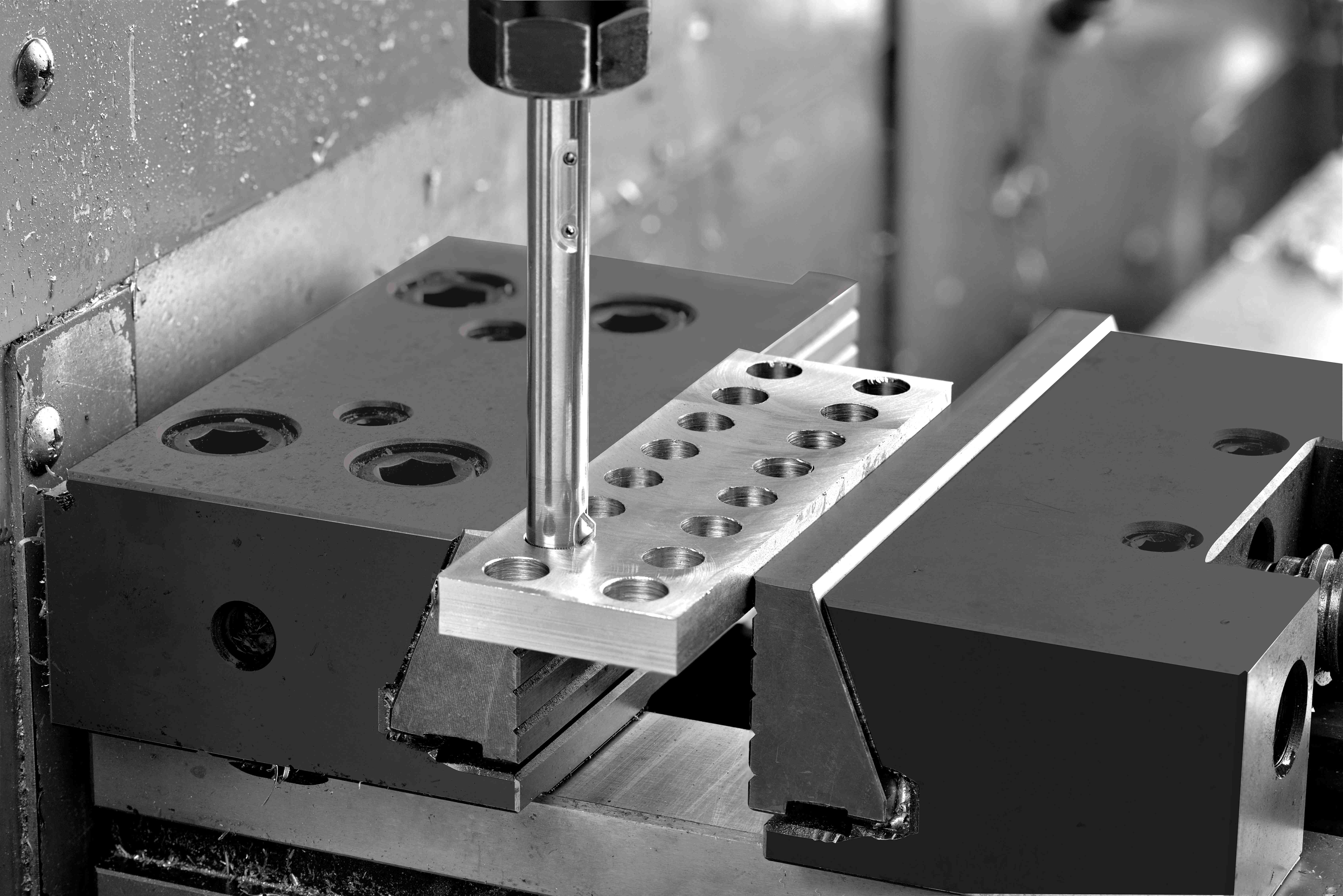

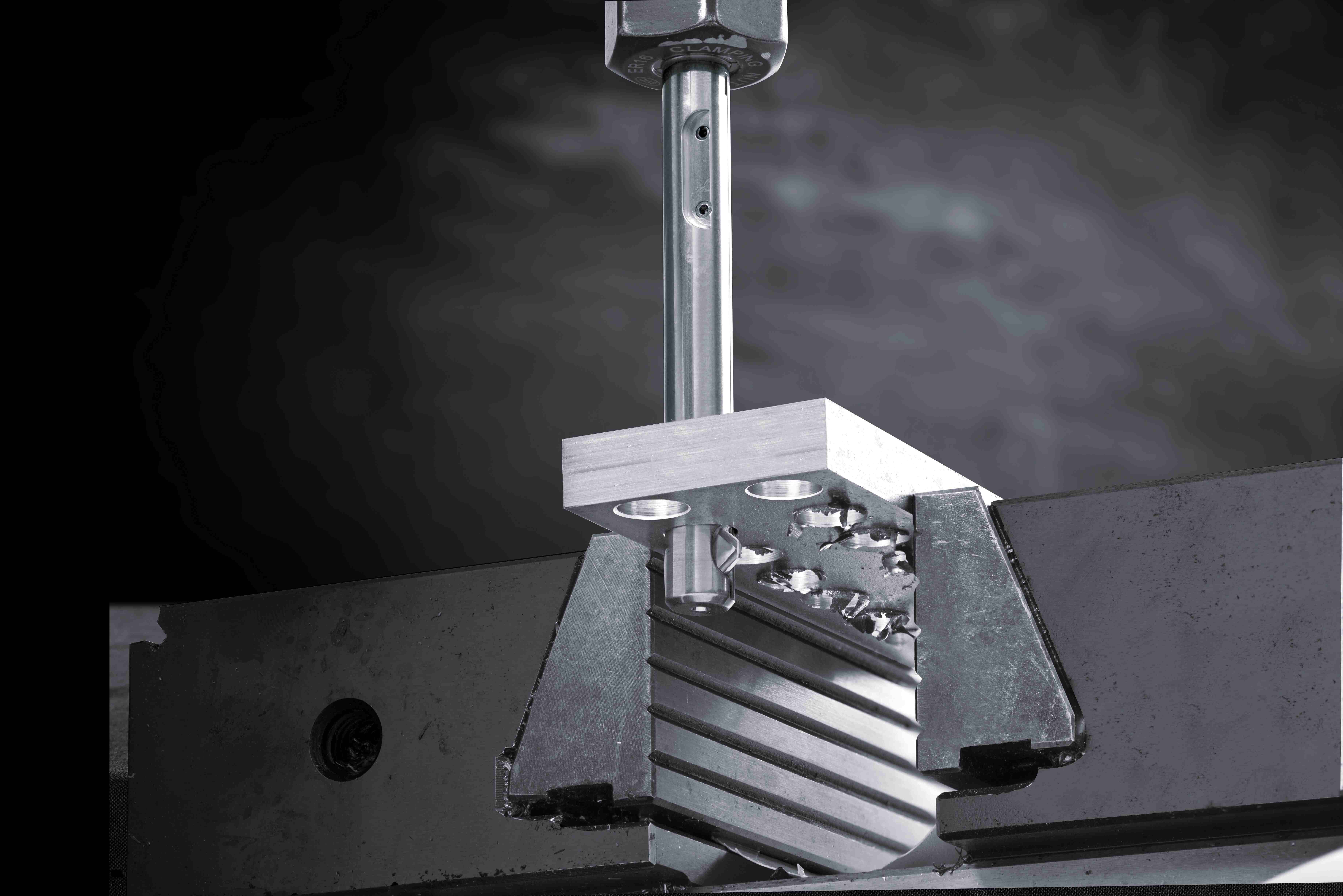

UBURR in Action

UBURR blades

Blade features:

Our high-precision blades, made of High-Speed Steel (HSS) and Solid-Carbide, offer toughness and durability, enabling them to withstand high impact loads and shock during machining processes. This enhances tool reliability and minimizes the risk of tool breakage or chipping, while also exhibiting excellent resistance to wear and abrasion. They can withstand prolonged use without significant deterioration in cutting performance, extending tool life and reducing the frequency of tool replacements.

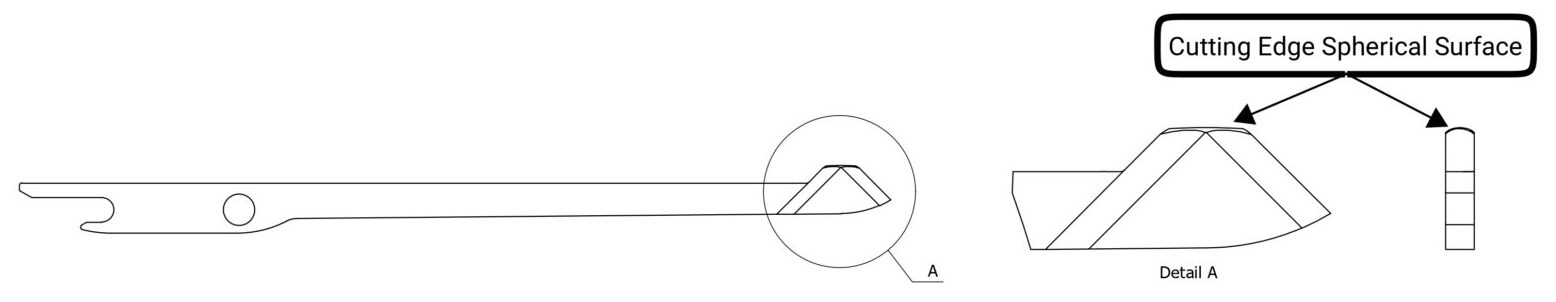

The blade’s unique geometry is engineered to prevent damage to the inner surfaces of the hole while entering it, maintaining the integrity of the workpiece with every pass, and featuring a unique spherical surface. UBURR blades are available in 3 sizes named type 2.5, 3 and 5, with each type offering PL, ML and HL chip-formers, coated with TiAlN or uncoated.

Each blade comes with an rMQR rectangular engraved laser code for technical information, including machining guidelines and cutting parameters.

UBURR Blade 1 UBURR Blade 2 UBURR Blade 3 UBURR Blade 4 UBURR Blade 5
QR Code

Download the QRBOT app to scan the Rectangular Micro QR Code (rMQR)
and access the UBURR machining guidelines

UBURR Blade cutting-edge geometry

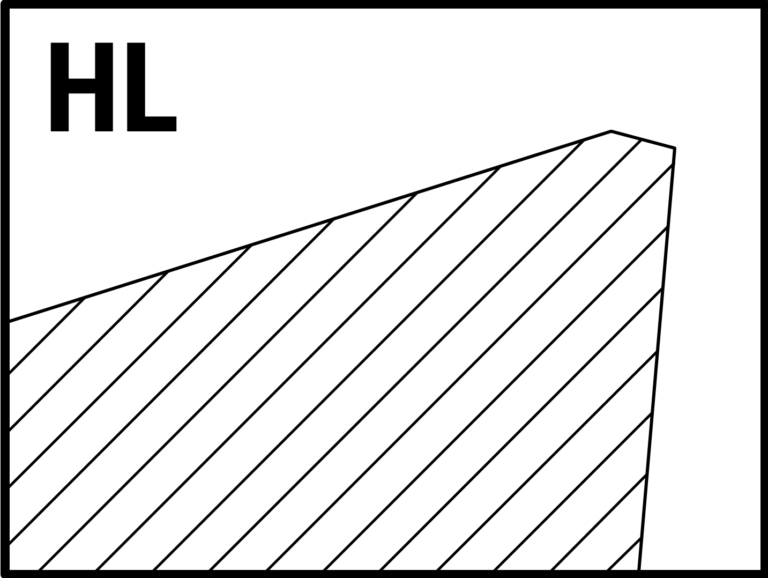

HL

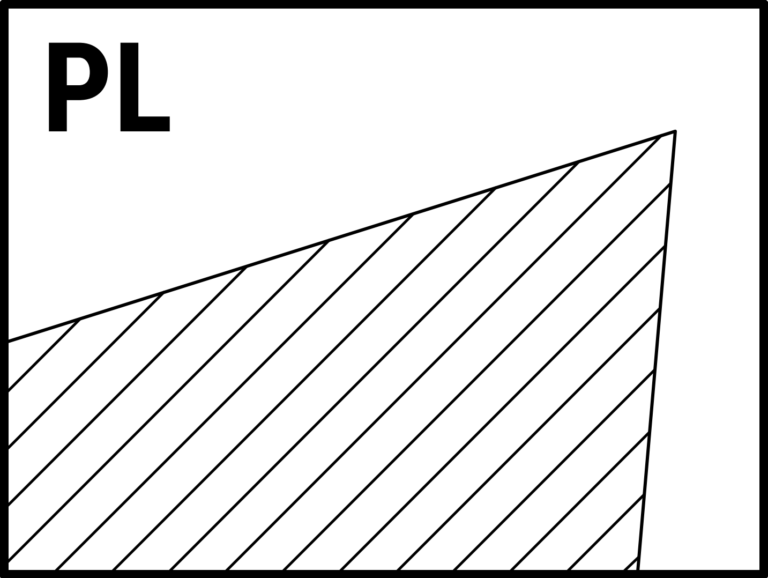

Positive cutting land

Suitable for all around purpose and ISO P,M,K,N,S as well as composite materials

HL

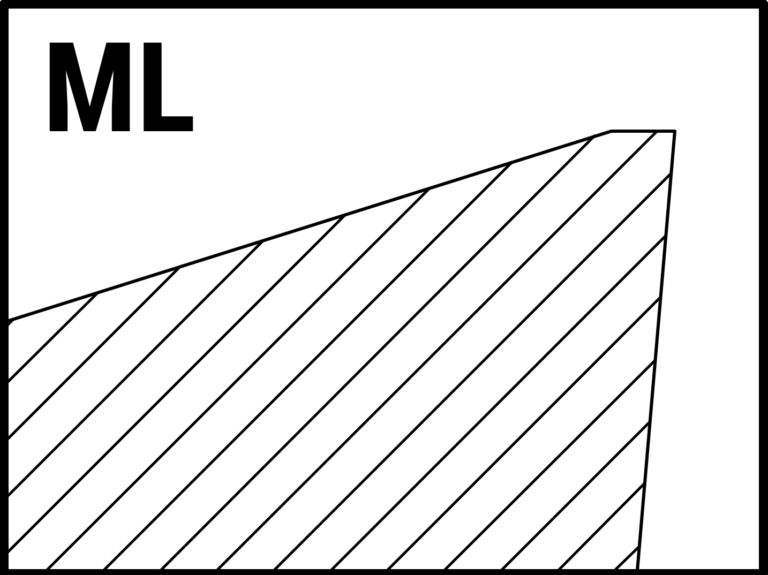

Moderate cutting land

Suitable for ISO P, M, K, S, H materials.

HL

Negative cutting land

Suitable for ISO P, M, K, S, H materials.

Positive cutting land
Moderate cutting land
Negative cutting land

UBURR Blades specifications table

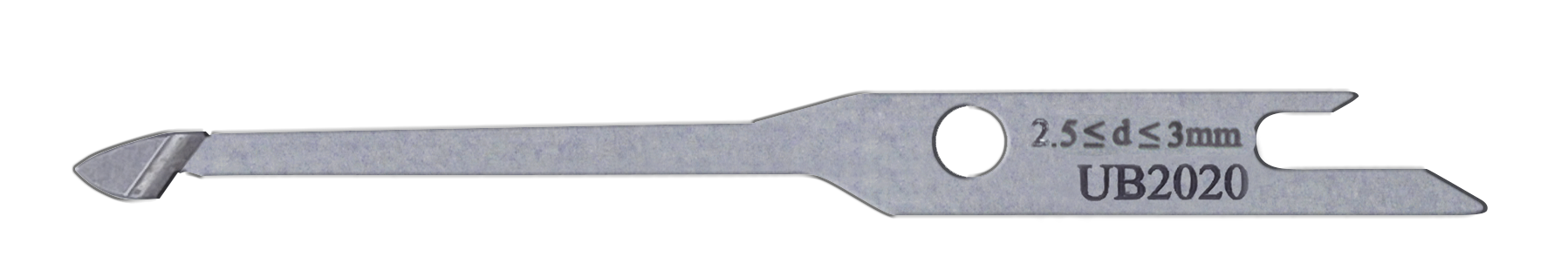

SIZE 2.5 BLADE (1) FOR PILOT HOLE Ø2.5 (0.098") ≤ d < Ø3.0 (0.118")
BLADE SKU DESIGNATION DESCRIPTION
UB2020(1) UB-TSB-2.5-PL HSS Blade size 2.5 without coating and type P chip-former

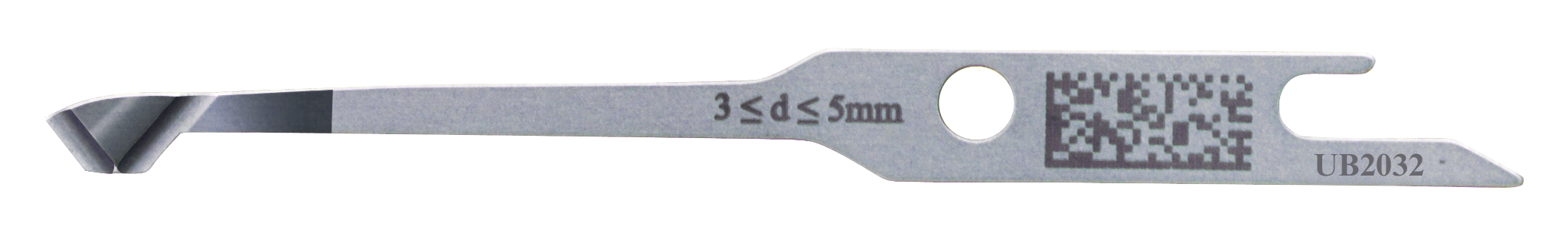

SIZE 3 BLADE FOR PILOT HOLE Ø3.0 (0.118") ≤ d < Ø5.0 (0.197")
BLADE SKU DESIGNATION DESCRIPTION Blade 3
UB2030 UB-TSB-3-PL HSS blade size 3 without coating and type P chip-former
UB2032 UB-TSB-3-PL-NCT HSS blade size 3 with TiAlN coating and type P chip-former
UB2034 UB-TSB-3-ML-NCT HSS blade size 3 with TiAlN coating and type M chip-former
UB2036 UB-SCB-3-PL-NCT Carbide blade size 3 with TiAlN coating and type P chip-former
UB2038 UB-SCB-3-ML-NCT Carbide blade size 3 with TiAlN coating and type M chip-former

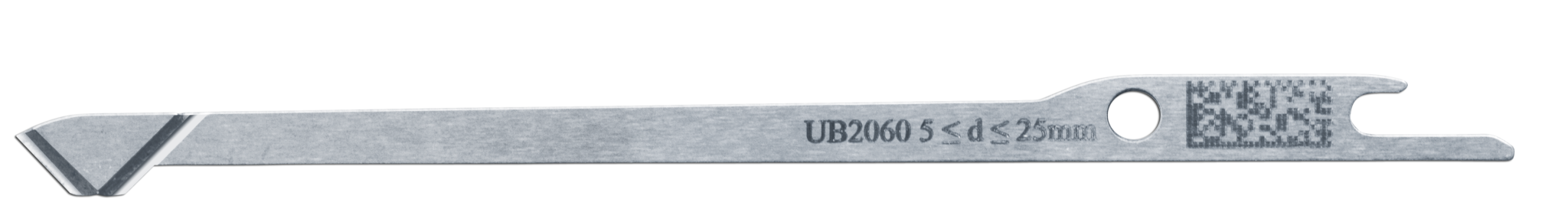

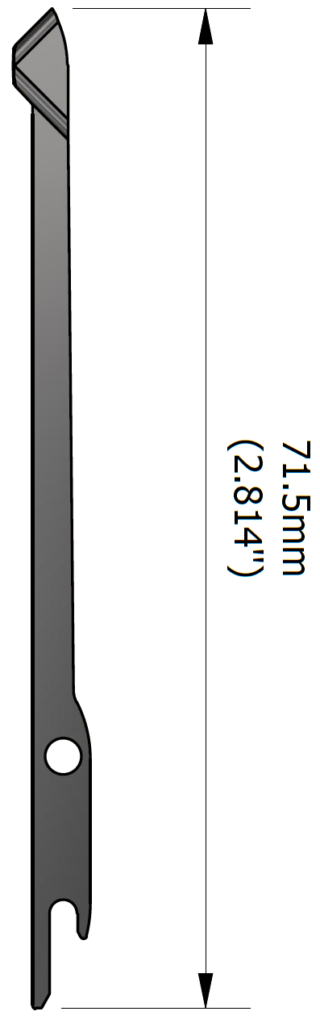

SIZE 5 BLADE FOR PILOT HOLE d ≥ Ø5.0 (0.197")
BLADE SKU DESIGNATION DESCRIPTION Blade 5
UB2060 UB-TSB-5-PL HSS blade size 5 without coating and type P chip-former
UB2062 UB-TSB-5-PL-NCT HSS blade size 5 with TiAlN coating and type P chip-former
UB2063 UB-TSB-5-ML-NCT HSS blade size 5 with TiAlN coating and type M chip-former
UB2067 UB-SCB-5-PL-NCT Carbide blade size 5 with TiAlN coating and type P chip-former
UB2069 UB-SCB-5-ML-NCT Carbide blade size 5 with TiAlN coating and type M chip-former

(1) The UB2020 blade, type 2.5, designed only for back deburring

UBURR BLADES coding system specifications and identification:

UBURR TOOL-HOLDERS coding system specifications and identification:

UBURR tool-holder Features

UBURR tool-holders bearing the DURASHIELD mark deliver premium performance in demanding manufacturing environments. Each tool represents the pinnacle of precision engineering and reliability.

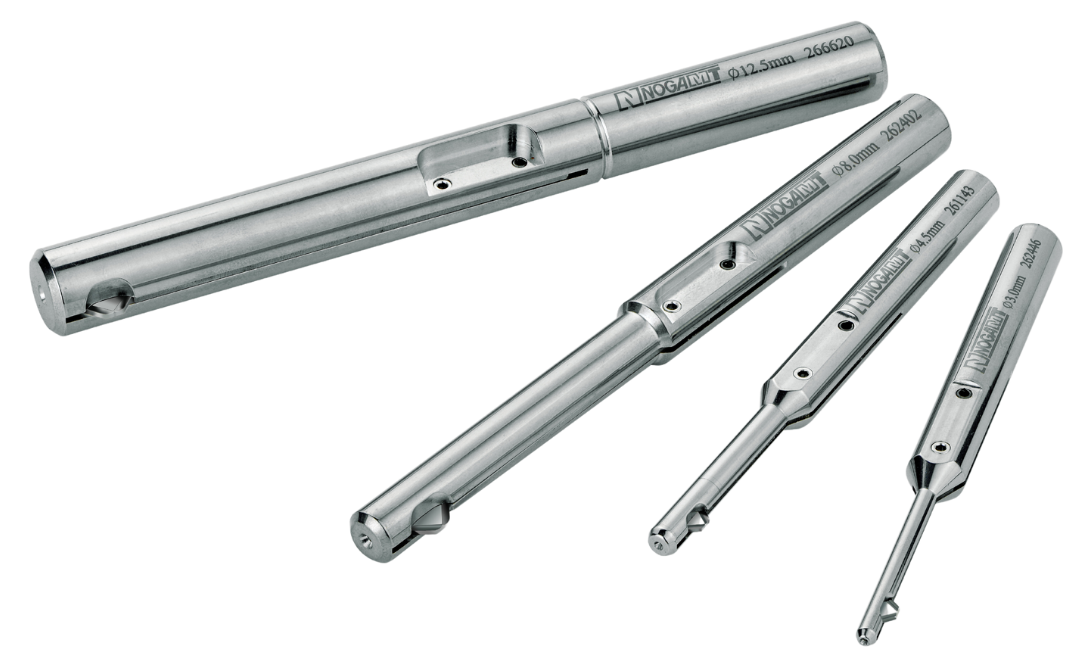

UBURR tool-holder Range

The UBURR standard tool series covers a wide range of pilot holes from Ø2.5 to Ø25mm (0.098″ to 0.984”) with 0.5mm (.0197”) increments.

UBURR tool-holder Key-Features
  • Superior Strength:Engineered to handle heavy loads and demanding machining operations with consistent performance
  • Maximum Toughness: Maintains reliable operation under the most challenging industrial conditions
  • Enhanced Wear Resistance: Extended tool life significantly reduces operational costs and maintenance requirements
  • Precision Machinability: Designed for optimal accuracy and consistent performance
  • Thermal Stability:Maintains structural integrity and precision even at elevated temperatures
  • Advanced Corrosion Protection: Features a specialized passivation process that provides superior protection without additional coatings

The eco-friendly manufacturing process eliminates the need for additional protective layers while delivering superior performance in all working conditions.

Durashield Tool Holders

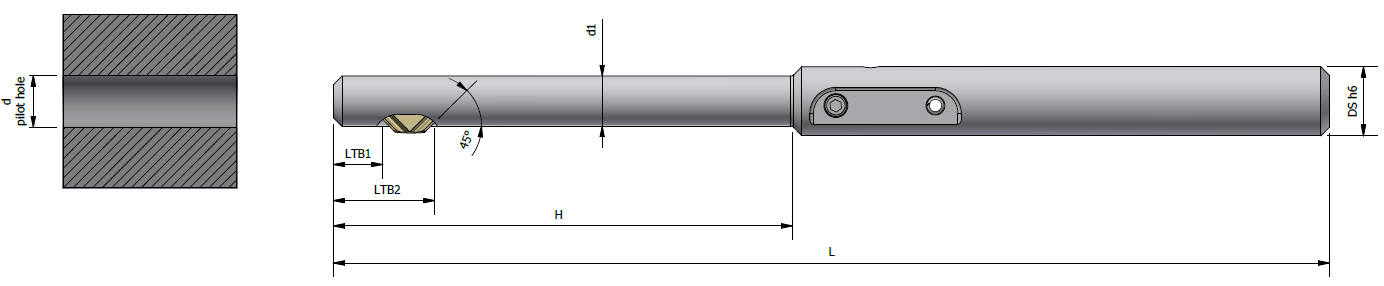

UBURR tool-holders metric parameters (mm)

Tool-Holder
SKU		 Tool-Holder Description + Blade SKU = Set Description Set
SKU		 Ød for Coarse
Screw Threads		 ØPre-
Drill		 for Fine Screw Threads ØPre-
Drill		 Od1 ODS h6 LTB1 LTB2 H L Max.
Slope Angle		 Blade
Type
UB1025 UB-d025-C08-H29-L69 + UB2020(1) = UBS-d025-C08-H29-L69 UB2500 2.50-3.00 M3X0.5 2.5 M3X0.35 2.65 2.4 8 (1) 7 29 69 23 2.5(1)
UB1030 UB-d030-C08-H29-L85 + UB2030 = UBS-d030-C08-H29-L85 UB3000 3.00-3.50 M4X0.7 3.3 M3.5X0.35 3.15 2.9 8 4 10 29 85 20 3
UB1035 UB-d035-C08-H29-L85 + UB2030 = UBS-d035-C08-H29-L85 UB3001 3.50-4.00 M4.5X0.75 3.75 M4X0.5 3.5 3.4 8 4 10 29 85 17 3
UB1040 UB-d040-C08-H29-L85 + UB2030 = UBS-d040-C08-H29-L85 UB3002 4.00-4.50 M5X0.8 4.2 M4.5X0.5 / M5X0.75 4.0 / 4.3 3.9 8 4 10 29 85 15 3
UB1045 UB-d045-C08-H29-L85 + UB2030 = UBS-d045-C08-H29-L85 UB3003 4.50-5.00 M5X0.5 4.5 4.4 8 4 10 29 85 14 3
UB1050 UB-d050-C08-H53-L115 + UB2060 = UBS-d050-C08-H53-L115 UB3004 5.00-5.50 M6x1.0 5 M6X7.5 5.3 4.9 8 4 12 53 115 12 5
UB1055 UB-d055-C08-H53-L115 + UB2060 = UBS-d055-C08-H53-L115 UB3005 5.50-6.00 M6X0.5 5.5 5.4 8 4 12 53 115 11 5
UB1060 UB-d060-C08-H53-L115 + UB2060 = UBS-d060-C08-H53-L115 UB3006 6.00-6.50 M7x1.0 6 M7X7.5 6.3 5.9 8 4 12 53 115 10 5
UB1065 UB-d065-C08-H53-L115 + UB2060 = UBS-d065-C08-H53-L115 UB3007 6.00-6.50 M8X1.25 6.8 M7X0.5 6.5 6.4 8 4 10 53 115 11 5
UB1070 UB-d070-C08-H53-L115 + UB2060 = UBS-d070-C08-H53-L115 UB3008 6.50-7.00 M8X0.75 / M8X1.0 7.3 / 7.0 6.9 8 4 12 53 115 9 5
UB1075 UB-d075-C08-H53-L115 + UB2060 = UBS-d075-C08-H53-L115 UB3009 7.50-8.00 M9X1.25 7.8 M8X0.5 7.5 7.4 8 4 12 53 115 8 5
UB1080 UB-d080-C08-H53-L115 + UB2060 = UBS-d080-C08-H53-L115 UB3010 8.00-8.50 M9X0.75 / M9X1.0 8.3 / 8.0 7.9 10 4 12 53 115 8 5
UB1085 UB-d085-C08-H53-L115 + UB2060 = UBS-d085-C08-H53-L115 UB3011 8.50-9.00 M10X1.5 8.5 M10X1.25 8.8 8.4 10 4 12 53 115 7 5
UB1090 UB-d090-C08-H53-L115 + UB2060 = UBS-d090-C08-H53-L115 UB3012 9.00-9.50 M10X0.75 / M10X1.0 9.3 / 9.0 8.9 10 4 12 53 115 7 5
UB1095 UB-d095-C08-H53-L115 + UB2060 = UBS-d095-C08-H53-L115 UB3013 9.50-10.00 M11X1.5 9.5 M10X0.5 / M11X1.25 9.5 / 9.8 9.4 10 4 12 53 115 7 5
UB1100 UB-d100-C10-H80-L125 + UB2060 = UBS-d100-C10-H80-L125 UB3014 10.00-10.50 M12X1.75 10.3 M11X1.0 / M12X1.25 10.0/ 10.3 9.9 10 4 12 80 125 6 5
UB1105 UB-d105-C10-H80-L125 + UB2060 = UBS-d105-C10-H80-L125 UB3015 10.50-11.00 M12X1.5 10.5 10.4 10 4 12 80 125 6 5
UB1110 UB-d110-C10-H80-L125 + UB2060 = UBS-d110-C10-H80-L125 UB3016 11.00-11.50 M12X0.75 / M12X1.0 11.3 / 11.0 10.9 10 4 12 80 125 6 5
UB1115 UB-d115-C10-H80-L125 + UB2060 = UBS-d115-C10-H80-L125 UB3017 11.50-12.00 M14X1.5 11.5 11.4 12 4 12 80 125 5 5
UB1120 UB-d120-C10-H80-L125 + UB2060 = UBS-d120-C10-H80-L125 UB3018 12.00-12.50 M14X2.0 12 M13X1.0 12.2 11.9 12 4 12 80 125 5 5
UB1125 UB-d125-C10-H80-L125 + UB2060 = UBS-d125-C10-H80-L125 UB3019 12.50-13.00 M14X1.25 / M14X1.5 12.8 / 12.5 12.4 12 4 12 80 125 5 5
UB1130 UB-d130-C10-H80-L125 + UB2060 = UBS-d130-C10-H80-L125 UB3020 13.00-13.50 M14X1.0 13 12.9 12 4 12 80 125 5 5
UB1135 UB-d135-C10-H80-L125 + UB2060 = UBS-d135-C10-H80-L125 UB3021 13.50-14.00 M15X1.5 13.5 13.4 12 4 12 80 125 5 5
UB1140 UB-d140-C10-H80-L125 + UB2060 = UBS-d140-C10-H80-L125 UB3022 14.00-14.50 M16X2.0 14 M15X1.0 14 13.9 12 4 12 80 125 4 5
UB1145 UB-d145-C10-H80-L125 + UB2060 = UBS-d145-C10-H80-L125 UB3023 14.50-15.00 M16X1.25 / M16X1.5 14.8 / 14.5 14.4 12 4 12 80 125 4 5
UB1150 UB-d150-C10-H80-L125 + UB2060 = UBS-d150-C10-H80-L125 UB3024 15.00-15.50 M16X1.0 15 14.9 12 4 12 80 125 4 5
UB1155 UB-d155-C10-H80-L125 + UB2060 = UBS-d155-C10-H80-L125 UB3025 15.50-16.00 M18X2.5 15.5 15.4 12 4 12 80 125 4 5
UB1160 UB-d160-C10-H80-L125 + UB2060 = UBS-d160-C10-H80-L125 UB3026 16.00-16.50 M18X2.0 16 15.9 16 4 12 80 125 4 5
UB1165 UB-d165-C10-H80-L125 + UB2060 = UBS-d165-C10-H80-L125 UB3027 16.50-17.00 M18X1.5 16.5 16.4 16 4 12 80 125 4 5
UB1170 UB-d170-C10-H80-L125 + UB2060 = UBS-d170-C10-H80-L125 UB3028 17.00-17.50 M18X1.0 17 16.9 16 4 12 80 125 4 5
UB1175 UB-d175-C10-H80-L125 + UB2060 = UBS-d175-C10-H80-L125 UB3029 17.50-18.00 M20X2.5 17.5 17.4 16 4 12 80 125 3 5
UB1180 UB-d180-C10-H80-L125 + UB2060 = UBS-d180-C10-H80-L125 UB3030 18.00-18.50 M20X2.0 18 17.9 16 4 12 80 125 3 5
UB1185 UB-d185-C10-H80-L125 + UB2060 = UBS-d185-C10-H80-L125 UB3031 18.50-19.00 M20X1.5 18.5 18.4 16 4 12 80 125 3 5
UB1190 UB-d190-C10-H80-L125 + UB2060 = UBS-d190-C10-H80-L125 UB3032 19.00-19.50 M20X1.0 19 18.9 16 4 12 80 125 3 5
UB1195 UB-d195-C20-H80-L125 + UB2060 = UBS-d195-C20-H80-L125 UB3033 19.50-20.00 M22X2.5 19.5 19.4 20 4 12 80 125 3 5
UB1200 UB-d200-C20-H80-L125 + UB2060 = UBS-d200-C20-H80-L125 UB3034 20.00-20.50 M22X2.0 20 19.9 20 4 12 80 125 3 5
UB1205 UB-d205-C20-H80-L125 + UB2060 = UBS-d205-C20-H80-L125 UB3035 20.50-21.00 M22X1.5 20.5 20.4 20 4 12 80 125 3 5
UB1210 UB-d210-C20-H80-L125 + UB2060 = UBS-d210-C20-H80-L125 UB3036 21.00-21.50 M24X3.0 21 M22X1.0 21 20.9 20 4 12 80 125 3 5
UB1215 UB-d215-C20-H80-L125 + UB2060 = UBS-d215-C20-H80-L125 UB3037 21.50-22.00 21.4 20 4 12 80 125 3 5
UB1220 UB-d220-C20-H80-L125 + UB2060 = UBS-d220-C20-H80-L125 UB3038 22.00-22.50 M24X2.0 22 21.9 20 4 12 80 125 3 5
UB1225 UB-d225-C20-H80-L125 + UB2060 = UBS-d225-C20-H80-L125 UB3039 22.50-23.00 M24X1.5 22.5 22.4 20 4 12 80 125 3 5
UB1230 UB-d230-C20-H80-L125 + UB2060 = UBS-d230-C20-H80-L125 UB3040 23.00-23.50 M24X1.0 / M25X2.0 23.0 / 23.0 22.9 20 4 12 80 125 3 5
UB1235 UB-d235-C20-H80-L125 + UB2060 = UBS-d235-C20-H80-L125 UB3041 23.50-24.00 M25X1.5 23.5 23.4 20 4 12 80 125 3 5
UB1240 UB-d240-C20-H80-L125 + UB2060 = UBS-d240-C20-H80-L125 UB3042 24.00-24.50 M27X3.0 24 23.9 20 4 12 80 125 3 5
UB1245 UB-d245-C20-H80-L125 + UB2060 = UBS-d245-C20-H80-L125 UB3043 24.50-25.00 24.4 20 4 12 80 125 3 5
UB1250 UB-d250-C20-H80-L125 + UB2060 = UBS-d250-C20-H80-L125 UB3044 25.00-25.50 24.9 20 4 12 80 125 3 5

(1) The UB2020 blade designed only for back deburring

UBURR Tool-holders spare parts:

  • SP0105 Hex L-Key 0.050" 1+1/16/1+9/16
  • UB0021 Blade Clamping Screw - M2.5 X 0.35
Technical Guidelines

UBURR tool-holders imperial parameters (inch)

Tool-
Holder
SKU		 Tool-Holder
Description		 + Blade
SKU		 = Set Description Set
SKU		 Ød" Suitable for
ØDrill”		 for UNC
Screw
Threads		 ØPre-
Drill		 for UNC
Screw
Threads		 ØPre-
Drill"		 Ød1″ ØDS”
h6″ 		LTB1″ LTB2" H" L" Max.
Slope Angle		 Blade
Type
UB1025 UB-d025-C08-H29-L69 + UB2020(1) = UBS-d025-C08-H29-L69 UB2500 0.098-0.118 7/64 0.094 0.315 (1) 0.276 1.142 2.717 23 2.5(1)
UB1030 UB-d030-C08-H29-L85 + UB2030 = UBS-d030-C08-H29-L85 UB3000 0.118-0.138 1/8 8X32 0.134 6X40 0.114 0.114 0.315 0.157 0.394 1.142 3.35 20 3
UB1035 UB-d035-C08-H29-L85 + UB2030 = UBS-d035-C08-H29-L85 UB3001 0.138-0.157 9/64, 5/32 10X24 0.154 8X36 0.138 0.134 0.315 0.157 0.394 1.142 3.35 17 3
UB1040 UB-d040-C08-H29-L85 + UB2030 = UBS-d040-C08-H29-L85 UB3002 0.157-0.177 11/64 10X32 0.161 0.154 0.315 0.157 0.394 1.142 3.35 15 3
UB1045 UB-d045-C08-H29-L85 + UB2030 = UBS-d045-C08-H29-L85 UB3003 0.177-0.197 3/16 12X24 0.177 12X28 0.181 0.173 0.315 0.157 0.394 1.142 3.35 14 3
UB1050 UB-d050-C08-H53-L115 + UB2060 = UBS-d050-C08-H53-L115 UB3004 0.197-0.217 13/64 1/4X20 0.201 0.193 0.315 0.157 0.472 2.087 4.53 12 5
UB1055 UB-d055-C08-H53-L115 + UB2060 = UBS-d055-C08-H53-L115 UB3005 0.217-0.236 7/32, 15/64 1/4X28 0.213 0.315 0.157 0.472 2.087 4.53 11 5
UB1060 UB-d060-C08-H53-L115 + UB2060 = UBS-d060-C08-H53-L115 UB3006 0.236-0.256 1/4 0.232 0.315 0.157 0.472 2.087 4.53 10 5
UB1065 UB-d065-C08-H53-L115 + UB2060 = UBS-d065-C08-H53-L115 UB3007 0.256-0.276 17/64 5/16X18 0.26 5/16X24 0.252 0.315 0.157 0.472 2.087 4.53 10 5
UB1070 UB-d070-C08-H53-L115 + UB2060 = UBS-d070-C08-H53-L115 UB3008 0.276-0.295 9/32 5/16X24 0.272 0.315 0.157 0.472 2.087 4.53 9 5
UB1075 UB-d075-C08-H53-L115 + UB2060 = UBS-d075-C08-H53-L115 UB3009 0.295-0.315 19/64, 5/16 0.291 0.315 0.157 0.472 2.087 4.53 8 5
UB1080 UB-d080-C10-H53-L115 + UB2060 = UBS-d080-C10-H53-L115 UB3010 0.315-0.335 21/64 3/8X16 0.315 0.311 0.394 0.157 0.472 2.087 4.53 8 5
UB1085 UB-d085-C10-H53-L115 + UB2060 = UBS-d085-C10-H53-L115 UB3011 0.335-0.354 11/32 3/8X24 0.331 0.394 0.157 0.472 2.087 4.53 7 5
UB1090 UB-d090-C10-H53-L115 + UB2060 = UBS-d090-C10-H53-L115 UB3012 0.354-0.374 23/64 7/16X14 0.37 0.35 0.394 0.157 0.472 2.087 4.53 7 5
UB1095 UB-d095-C10-H53-L115 + UB2060 = UBS-d095-C10-H53-L115 UB3013 0.374-0.394 3/8, 25/64 7/16X20 0.39 0.37 0.394 0.157 0.472 2.087 4.53 7 5
UB1100 UB-d100-C10-H80-L125 + UB2060 = UBS-d100-C10-H80-L125 UB3014 0.394-0.413 – 0.39 0.394 0.157 0.472 3.15 4.92 6 5
UB1105 UB-d105-C10-H80-L125 + UB2060 = UBS-d105-C10-H80-L125 UB3015 0.413-0.433 27/64 1/2X13 0.425 0.409 0.394 0.157 0.472 3.15 4.92 6 5
UB1110 UB-d110-C10-H80-L125 + UB2060 = UBS-d110-C10-H80-L125 UB3016 0.433-0.453 7/16 0.429 0.394 0.157 0.472 3.15 4.92 6 5
UB1115 UB-d115-C12-H80-L125 + UB2060 = UBS-d115-C12-H80-L125 UB3017 0.453-0.472 29/64, 15/32 1/2X20 0.453 0.449 0.472 0.157 0.472 3.15 4.92 5 5
UB1120 UB-d120-C12-H80-L125 + UB2060 = UBS-d120-C12-H80-L125 UB3018 0.472-0.492 31/64 9/16X12 0.48 0.469 0.472 0.157 0.472 3.15 4.92 5 5
UB1125 UB-d125-C12-H80-L125 + UB2060 = UBS-d125-C12-H80-L125 UB3019 0.492-0.512 1/2 9/16X18 0.508 0.488 0.472 0.157 0.472 3.15 4.92 5 5
UB1130 UB-d130-C12-H80-L125 + UB2060 = UBS-d130-C12-H80-L125 UB3020 0.512-0.531 33/64 0.508 0.472 0.157 0.472 3.15 4.92 5 5
UB1135 UB-d135-C12-H80-L125 + UB2060 = UBS-d135-C12-H80-L125 UB3021 0.531-0.551 35/64 5/8X11 0.535 0.528 0.472 0.157 0.472 3.15 4.92 5 5
UB1140 UB-d140-C12-H80-L125 + UB2060 = UBS-d140-C12-H80-L125 UB3022 0.551-0.571 9/16 0.547 0.472 0.157 0.472 3.15 4.92 4 5
UB1145 UB-d145-C12-H80-L125 + UB2060 = UBS-d145-C12-H80-L125 UB3023 0.571-0.591 37/64 5/8X18 0.571 0.567 0.472 0.157 0.472 3.15 4.92 4 5
UB1150 UB-d150-C12-H80-L125 + UB2060 = UBS-d150-C12-H80-L125 UB3024 0.591-0.610 39/64, 19/32 0.587 0.472 0.157 0.472 3.15 4.92 4 5
UB1155 UB-d155-C12-H80-L125 + UB2060 = UBS-d155-C12-H80-L125 UB3025 0.610-0.630 5/8 0.606 0.472 0.157 0.472 3.15 4.92 4 5
UB1160 UB-d160-C16-H80-L125 + UB2060 = UBS-d160-C16-H80-L125 UB3026 0.630-0.650 41/64 0.626 0.63 0.157 0.472 3.15 4.92 4 5
UB1165 UB-d165-C16-H80-L125 + UB2060 = UBS-d165-C16-H80-L125 UB3027 0.650-0.669 21/32 3/4X10 0.65 0.646 0.63 0.157 0.472 3.15 4.92 4 5
UB1170 UB-d170-C16-H80-L125 + UB2060 = UBS-d170-C16-H80-L125 UB3028 0.669-0.689 11/16 0.665 0.63 0.157 0.472 3.15 4.92 4 5
UB1175 UB-d175-C16-H80-L125 + UB2060 = UBS-d175-C16-H80-L125 UB3029 0.689-0.709 45/64 3/4X16 0.689 0.685 0.63 0.157 0.472 3.15 4.92 4 5
UB1180 UB-d180-C16-H80-L125 + UB2060 = UBS-d180-C16-H80-L125 UB3030 0.709-0.728 23/32 0.705 0.63 0.157 0.472 3.15 4.92 3 5
UB1185 UB-d185-C16-H80-L125 + UB2060 = UBS-d185-C16-H80-L125 UB3031 0.728-0.748 47/64 0.724 0.63 0.157 0.472 3.15 4.92 3 5
UB1190 UB-d190-C16-H80-L125 + UB2060 = UBS-d190-C16-H80-L125 UB3032 0.748-0.768 3/4 0.744 0.63 0.157 0.472 3.15 4.92 3 5
UB1195 UB-d195-C20-H80-L125 + UB2060 = UBS-d195-C20-H80-L125 UB3033 0.768-0.787 25/32 7/8X9 0.768 0.764 0.787 0.157 0.472 3.15 4.92 3 5
UB1200 UB-d200-C20-H80-L125 + UB2060 = UBS-d200-C20-H80-L125 UB3034 0.787-0.807 51/64 0.783 0.787 0.157 0.472 3.15 4.92 3 5
UB1205 UB-d205-C20-H80-L125 + UB2060 = UBS-d205-C20-H80-L125 UB3035 0.807-0.827 13/16 7/8X14 0.807 0.803 0.787 0.157 0.472 3.15 4.92 3 5
UB1210 UB-d210-C20-H80-L125 + UB2060 = UBS-d210-C20-H80-L125 UB3036 0.827-0.846 53/64 0.823 0.787 0.157 0.472 3.15 4.92 3 5
UB1215 UB-d215-C20-H80-L125 + UB2060 = UBS-d215-C20-H80-L125 UB3037 0.846-0.866 55/64 0.843 0.787 0.157 0.472 3.15 4.92 3 5
UB1220 UB-d220-C20-H80-L125 + UB2060 = UBS-d220-C20-H80-L125 UB3038 0.866-0.886 7/8 1⅛X8 0.874 0.862 0.787 0.157 0.472 3.15 4.92 3 5
UB1225 UB-d225-C20-H80-L125 + UB2060 = UBS-d225-C20-H80-L125 UB3039 0.886-0.906 57/64 0.882 0.787 0.157 0.472 3.15 4.92 3 5
UB1230 UB-d230-C20-H80-L125 + UB2060 = UBS-d230-C20-H80-L125 UB3040 0.906-0.925 29/32 1⅛X12 0.913 0.902 0.787 0.157 0.472 3.15 4.92 3 5
UB1235 UB-d235-C20-H80-L125 + UB2060 = UBS-d235-C20-H80-L125 UB3041 0.925-0.945 15/16 0.921 0.787 0.157 0.472 3.15 4.92 3 5
UB1240 UB-d240-C20-H80-L125 + UB2060 = UBS-d240-C20-H80-L125 UB3042 0.945-0.965 61/64 0.941 0.787 0.157 0.472 3.15 4.92 3 5
UB1245 UB-d245-C20-H80-L125 + UB2060 = UBS-d245-C20-H80-L125 UB3043 0.965-0.984 31/32 0.961 0.787 0.157 0.472 3.15 4.92 3 5
UB1250 UB-d250-C20-H80-L125 + UB2060 = UBS-d250-C20-H80-L125 UB3044 0.984-1.004 63/64, 1 1.1/8X7 0.984 0.98 0.787 0.157 0.472 3.15 4.92 3 5

(1) The UB2020 blade designed only for back deburring

UBURR Tool-holders spare parts:

  • SP0105 Hex L-Key 0.050" 1+1/16/1+9/16
  • UB0021 Blade Clamping Screw - M2.5 X 0.35
Technical Guidelines

UBURR tool-holders coding system specifications and identification:

UBURR Product
UBURR Product 1
UBURR Product 2
UBURR Product 3
UBURR Product 4

Innovating solutions, forging success from
the core of your challenges

Waydart Engineering & Technology crafts tailored product solutions with precision, innovation, and efficiency at its core. Specializing in industrial product design, advanced manufacturing, and next-gen technologies, we deliver exceptional quality and performance. Our unwavering commitment to transparency, reliability, and agility ensures seamless execution, no matter the complexity. Partner with us to turn visionary ideas into engineered excellence.

Waydart Engineering

Waydart Machine Tools

Connect Us
Registered Office - India

#10, Subash Nagar, Ganapathy, Coimbatore- 641006, Tamil Nadu, India

+91 7010613660

Info@waydart.com

Copyright © 2024 All Right Reserved By Waydart Pvt. Ltd.
Privacy policy
